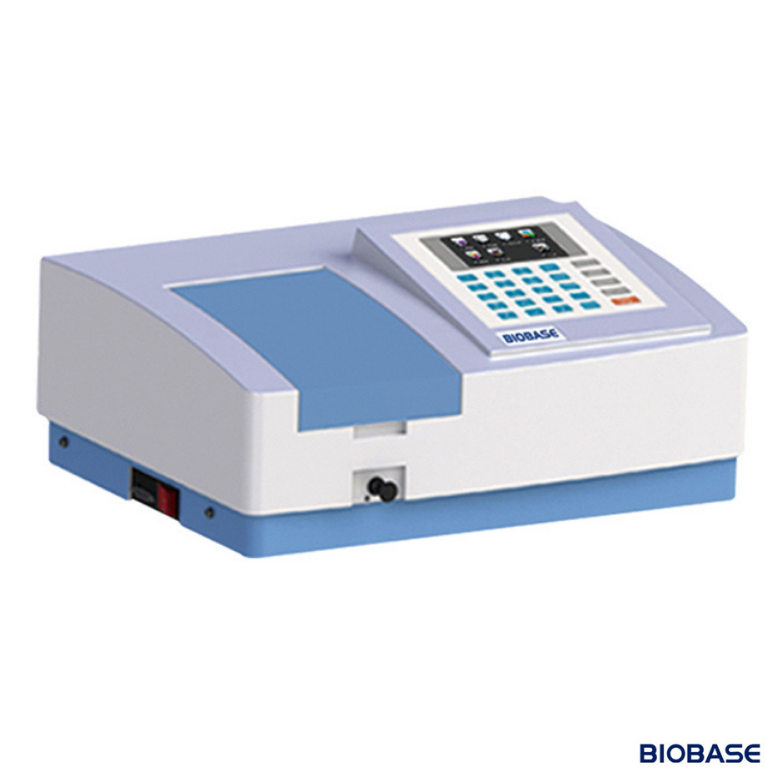

Biobase Tek Işınlı UV-VIS Spektrofotometre BK-UV1600PC
Models:
|
Model |
BK-UV1800 BK-UV1800PC |
BK-UV1600 BK-UV1600PC |
BK-V1800 BK-V1800PC |
BK-V1600 BK-V1600PC |
||||
|
Optical System |
Single Beam, Grating 1200 lines/mm |
|||||||
|
Wavelength Range |
190~1100nm |
320-1100nm |
||||||
|
Spectral Bandwidth |
2nm |
4nm |
2nm |
4nm |
||||
|
Wavelength Accuracy |
± 0.5nm |
|||||||
|
Wavelength Repeatability |
≤ 0.3nm |
|||||||
|
Photometric Accuracy |
± 0.002A (0~0.5Abs), ± 0.004A (0.5~1.0Abs), ± 0.5% T (0~100% T) |
|||||||
|
Photometric Repeatability |
0.001Abs (0~0.5Abs), 0.002Abs (0.5~1.0Abs), ≤ 0.2% T (0~100% T) |
|||||||
|
Stray Light |
≤ 0.05% T @ 360nm; 220nm |
≤ 0.05% T @ 360nm;220nm |
||||||
|
Stability |
± 0.001A / h @ 500nm |
|||||||
|
Baseline Flatness |
± 0.002A |
|||||||
|
Noise |
± 0.0005A |
|||||||
|
Display |
480 * 272 65 thousand true color TFT LCD |
|||||||
|
Photometric Mode |
T, A, C, E |
|||||||
|
Photometric Range |
0~200% T, -0.301~3.0A |
|||||||
|
Detector |
Silicon Photodiode |
|||||||
|
Light Source |
Deuterium Lamp, Tungsten Lamp |
|||||||
|
Input |
Membrane Keypad |
|||||||
|
Output |
USB Print and data output, Connect PC |
|||||||
|
Standard Accessories |
10mm glass cuvette *4 units 10mm quartz cuvette *2 units |
10mm glass uvette *4 units |
||||||
|
Optional Accessories |
Single cell holder,General cell holder,Test tube holder,Solid sample holder,Deuterium lamp,Halogen lamp,4-place Cell holder,Printer,Water-jacketed cell holder,Reflection accessory 5°,Auto 8-cell changer,Micro cell holder,Water-jacketed cell holder,Constant-temperature system
|
4-place Cell holder,Printer, Test tube holder,Deuterium lamp,Halogen lamp
|
||||||
|
Power Supply |
AC110V/220±10% ,60/50Hz |
|||||||
|
Packing Size(mm) |
620*500*370 |
620*500*370 |
620*500*370 |
620*500*370 |
||||
|
Gross Weight (kg) |
18 |
18 |
16.5 |
16.5 |
||||
